GFEVT750-10R高速熔斷器 10A-50A 750V700Vdc

[附件: Download]

Dimensions (mm)

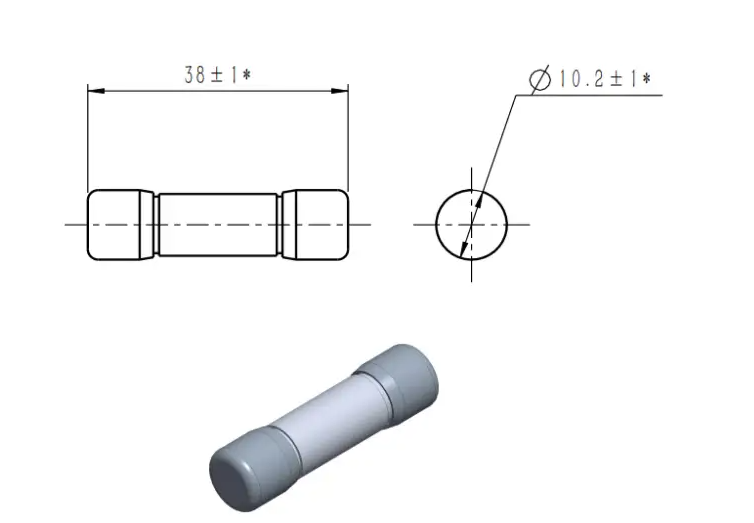

Ferrule xxA-10R Dimensions

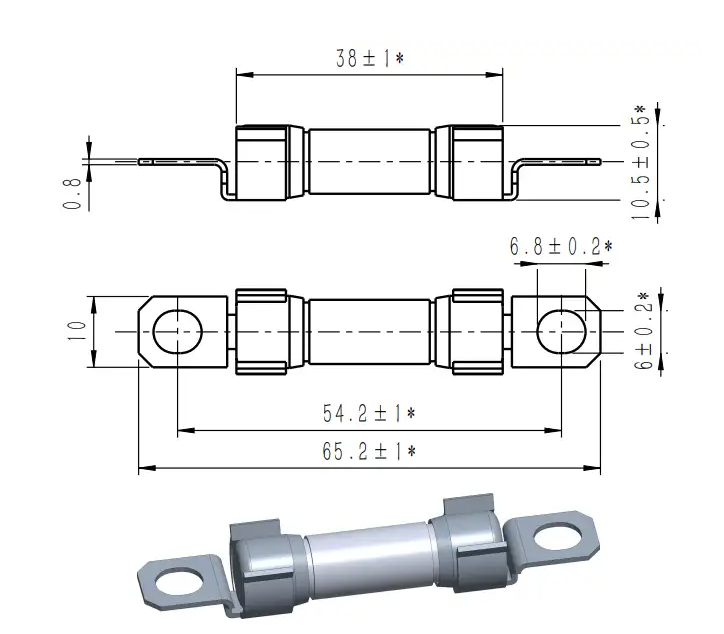

Axial boltxxAP-10R Dimensions

Description

Low watt losses
Designed for DC applications
Excellent DC performance
Superior cycling capability

Standards & Approvals

Refer to:
- UL 248.13 / UL 248.20
- IEC 60269.1 / IEC 60269.4
- GB 13539.1 / GB 13539.4
- JASO D622
Manufactured under an IATF16949 quality system for compliance with automotive requirements
Reach declaration available upon request
RoHS compliant

Features & Benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage
Up to ten times faster opening under high fault current conditions ensures reliable protection of circuits and components
Can be applied in parallel to realize greater ampacity within sizing guidelines
Excellent resistance to voltaic impingement and environmental temperature variations
Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect	Part No.	Fuse Amps	Body	Breaking Capacity	Average @ 20KA/750Vdc		Power Loss 1.0(W)	Approvals
Connect	Part No.	Fuse Amps	Body	Breaking Capacity	A2s Melting	A2s Clearing	Power Loss 1.0(W)	UL
Ferrule	GFEVT750-10A-10R	10A	Ceramics	20 kA	28.9	97.0	2.0	○ Pending
	GFEVT750-15A-10R	15A	Ceramics	20 kA	72.3	242.5	2.5	○ Pending
	GFEVT750-20A-10R	20A	Ceramics	20 kA	145.5	440.0	3.2	○ Pending
	GFEVT750-25A-10R	25A	Ceramics	20 kA	225.0	668.0	3.6	○ Pending
	GFEVT750-30A-10R	30A	Ceramics	20 kA	311.3	942.0	4.5	○ Pending
	GFEVT750-32A-10R	32A	Ceramics	20 kA	356.3	996.0	5.5	○ Pending
	GFEVF750-40A-10R	*40A	Fiberglass	20 kA	439.6	1605.0	6.5	○ Pending
	GFEVF750-50A-10R	*50A	Fiberglass	20 kA	683.2	3048.5	8.5	○ Pending

Connect	Part No.	Fuse Amps	Body	Breaking Capacity	Average @ 20KA/750Vdc		Power Loss 1.0(W)	Approvals
Connect	Part No.	Fuse Amps	Body	Breaking Capacity	A2s Melting	A2s Clearing	Power Loss 1.0(W)	UL
Axial bolt	GFEVT750-10AP-10R	10A	Ceramics	20 kA	28.9	97.0	2.0	○ Pending
	GFEVT750-15AP-10R	15A	Ceramics	20 kA	72.3	242.5	2.5	○ Pending
	GFEVT750-20AP-10R	20A	Ceramics	20 kA	145.5	440.0	3.2	○ Pending
	GFEVT750-25AP-10R	25A	Ceramics	20 kA	225.0	668.0	3.6	○ Pending
	GFEVT750-30AP-10R	30A	Ceramics	20 kA	311.3	942.0	4.5	○ Pending
	GFEVT750-32AP-10R	32A	Ceramics	20 kA	356.3	996.0	5.5	○ Pending
	GFEVF750-40AP-10R	*40A	Fiberglass	20 kA	439.6	1605.0	6.5	○ Pending
	GFEVF750-50AP-10R	*50A	Fiberglass	20 kA	683.2	3048.5	8.5	○ Pending

DC Cold Resistance is measured at <10% of the rated current in an ambient temperature of 25℃；
